While traditional radiators often dictate where furniture can go, modern heating solutions are becoming invisible parts of the home's design. The contrast between bulky old boilers and sleek exterior units is striking for any homeowner. As we move toward sustainable living, the way we heat our spaces is undergoing a quiet but radical transformation. Following these essential setup tips will help you transition to a more efficient home environment.
Comparing Installation Costs and Scale for Different Homes
When considering an air source heat pump installation, one of the first questions is cost-and it varies significantly depending on your property’s size. Initial figures aren’t one-size-fits-all; they depend on heating demand, insulation levels, and layout. However, subsidies like the Boiler Upgrade Scheme help bring down the upfront investment, making the technology accessible to more households.
| 🏠 Property Size | 📏 Floor Area (m²) | 💰 Starting Price (After Subsidy) | 🌡️ Heat Output Requirement |
|---|---|---|---|
| Small | 50-80 | From £3,500 | 6-8 kW |
| Medium | 80-110 | From £5,000 | 8-11 kW |
| Large | 110-180 | From £6,000 | 11-14 kW |
| Very Large | 180+ | From £7,500 | 14+ kW |
These prices reflect post-grant costs and assume standard installation conditions. Properties with complex ductwork or poor insulation may require additional upgrades. Seeking out specialized services such as Air To Heat ensures that the system is perfectly calibrated for local residential needs. The key is not just affordability, but thermal efficiency over the long term.
Calculating Heating Load and System Capacity
Understanding Manual J design conditions
Accurate sizing is the foundation of any high-performance heat pump system. Licensed professionals typically use ACCA Manual J calculations to determine your home’s exact heating load. This method evaluates every factor-from room dimensions to window types-to ensure the unit meets 90-120% of your total heating demand. Undersized systems struggle in winter; oversized ones short-cycle, reducing lifespan and efficiency.
Climate-specific unit selection
In regions like Medway, where winter temperatures can dip, choosing a cold-climate air source heat pump is non-negotiable. These models are engineered to extract heat from the air even at or below freezing. Modern units maintain performance down to -15°C without relying on electric backup, ensuring consistent comfort and lower running costs.
Matching capacity to insulation levels
Your home’s insulation is just as critical as the unit’s output. A well-insulated property retains heat more effectively, requiring a smaller, less expensive pump. Conversely, older homes with single glazing or minimal wall insulation may need higher-capacity systems. Upgrading insulation first can reduce the required kilowatt output-potentially lowering both installation and operational costs. It’s all about balance: match the system to the building envelope.

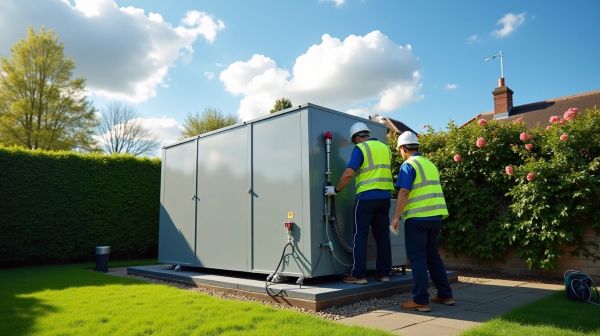

Strategic Placement and Outdoor Unit Setup
Optimising airflow and noise reduction
The outdoor unit needs consistent airflow to function efficiently. Installers recommend at least 50 cm of clearance on all sides and 1 meter above to prevent recirculation of cold exhaust air. For homes with limited garden space or close neighbors, compact and low-noise models are ideal. Modern units operate at sound levels comparable to rainfall-usually under 50 dB-so noise pollution is rarely an issue when installed correctly.
Protecting the unit from snow and debris
During winter, the unit undergoes defrost cycles, which produce condensation and ice melt. Placing it on a raised stand or wall bracket helps prevent water accumulation and snow drift blockage. A slight downward tilt ensures proper drainage. Avoid positioning it under eaves where snow could fall and damage the fan. Strategic placement isn’t just about convenience-it’s about maximizing longevity and avoiding avoidable wear.
Integrating Ductwork and Interior Distribution
Interoperability with existing radiators
One common concern is whether a heat pump will work with existing radiators. The answer is: it depends. Traditional systems run at high flow temperatures (60-70°C), but air source heat pumps operate more efficiently at lower temperatures (35-45°C). To compensate, you may need larger radiators or a switch to underfloor heating, which has a greater surface area and works well at lower temps. In many cases, cast iron radiators actually perform better due to their high thermal mass-so replacement isn’t always necessary.
Financial Incentives and Professional Standards
Leveraging the Boiler Upgrade Scheme
The Boiler Upgrade Scheme offers grants of up to £5,000 toward the installation of an air source heat pump. This incentive is designed to offset the higher initial cost and accelerate the return on investment. The subsidy is applied directly by certified installers at the point of sale, so homeowners don’t need to apply separately. This makes switching to sustainable home heating financially viable for many.
Verifying MCS and quality certifications
To qualify for the grant, the installer must be accredited under the MCS (Microgeneration Certification Scheme). This certification ensures compliance with technical and safety standards. Look also for affiliations with RECC, Trustmark, or NICEIC-these signal professionalism and accountability. Using a certified technician isn’t just about eligibility; it guarantees system reliability and preserves manufacturer warranties. It’s the safest path to a trouble-free installation.
Pre-Installation Checklist and Timeline
Managing the installation timeframe
Most air source heat pump installations take between three days and two weeks. The duration depends on whether you’re retrofitting into an older system or integrating with new underfloor heating. Complex electrical or plumbing modifications can extend the timeline.
- ✅ Conduct a full home energy survey to assess heat loss and system needs
- ✅ Clear the outdoor installation site of obstructions and vegetation
- ✅ Check your fuse box capacity-most systems require a dedicated circuit
- ✅ Schedule a professional consultation to review sizing and placement
Final electrical and refrigerant checks
Before commissioning, the installer must complete essential safety verifications. This includes inspecting electrical wiring for compliance, pressure-testing refrigerant lines, and ensuring proper grounding. These steps are mandatory and form part of the official sign-off process. Skipping them risks inefficiency, safety hazards, and voided warranties.
Common Questions
Is it possible to combine my heat pump with a solar battery to further reduce costs?
Yes, pairing your heat pump with solar panels and a battery storage system maximizes self-consumption of renewable energy. This reduces reliance on the grid and can significantly lower running costs, especially when the heat pump operates during off-peak hours using stored solar power.
Will I need to replace my antique cast iron radiators for this to work?
Not necessarily. Cast iron radiators have high thermal mass and work well with low-flow-temperature systems. If they’re adequately sized, they can be fully compatible. A professional assessment will confirm whether upgrades are needed based on your home’s heat demand.
How often should I schedule a professional inspection to keep the warranty valid?
Most manufacturers require an annual service to maintain warranty coverage. These inspections check refrigerant levels, electrical connections, and system performance, ensuring long-term reliability and efficiency.
